Midwest Sandright Wet Wide Belt Sanders

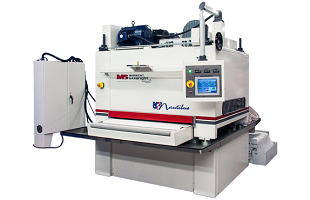

Nautilus 3
wet wide belt sander

NAUTILUS 3 WET DEBURRING & FINISHING MACHINES Nautilus 3 Wet Deburring and Finishing Machines are designed for the industrial user to economically deburr and/or finish a wide variety of component parts made from either sheet metal or steel plate. Designed with constant pass line height, a rugged split frame and four post design for stability, the Nautilus 3 will provide years of dependable service in the most demanding applications. A 10-inch diameter contact drum(s) and 12-inch diameter Scotch Brite™ brush(s) ensure exceptional part results where the finish is critical. Available in three and four head configurations, and in 37 and 52-inch wide models. Made in USA. Machine Configurations
nautilus 3
Belt Belt Belt

Belt Belt Brush
belt brush brush
Belt Brush Brush
belt belt brush brush
Belt Belt Brush Brush

STANDARD FEATURES
• Heavy-duty upper and lower frame weldments
• Heavy-duty conveyor bed is precision ground for flatness
• Constant pass line height with four (4) post design
• Four (4) precision jacks with covered gears and roller bearing guides
• Three and four head configurations
• Standard 37” and 52” widths
• Large 10” diameter contact drum(s) are high speed balanced
• Ultrasonic abrasive belt tracking system
• Models with brush head assemblies include standard oscillating speeds of 250 strokes per minute
• Large diameter conveyor bed and idler rollers
• Automatic self-aligning abrasive belt tracking system
• Automatic conveyor belt tracking
• 15-30 HP TEFC drive motors for each head assembly
• Infeed conveyor extension with two (2) vinyl covered rollers
• Outfeed conveyor extension
• Spring-loaded pinch rollers
• Individual amp meters for each head
• Automatic disc brake on each head
• HMI/PLC controls with color monitor
• Electronic thickness adjustment with positioning unit
• Electronic variable speed control with digital readout
• Emergency stops and safety interlocks
• UL/CSA Approved components

OPTIONAL EQUIPMENT
• Electronic variable speed belt/brush control Note: includes forward/reverse brush head rotation
• Adjustable contact drum with eccentric bearing
• Special conveyor belt with smooth splice to minimize telegraphing
• Small parts magnet
• Vacuum bed
• UL Approved electrical panel
