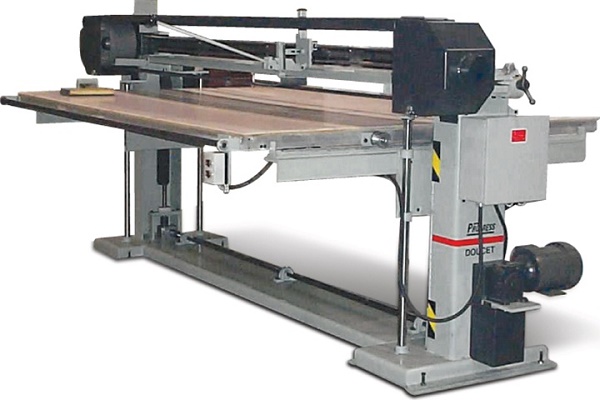

DOUCET HEAVY DUTY STROKE SANDERS
heavy duty stroke sander

Progress Doucet Stroke Belt Sanders Heavy Duty Models.
Built around a all welded structure, for a long lasting durability, it features dust hoods on both sides, a table with steel rollers and virtually wear free balanced and quiet running aluminum pulleys.
Three models are available:
PMC-264-6-HD, PMC-312-6-HD, PMC-360-6-HD
They are equipped with the same features than the Stroke Belt Sanders and Polishers but:
Table covered with HDPE plastic surface
Motorized vertical table adjustment
Table weight capacity: 1000 lbs
Table sizes, abrasive belt sizes and HP motors vary according to the model.
Model Table Size Abrasive Belt Motor / Voltage Horizontal Adjustment Overall (Length-Width-Height) +/- 1/8"
PMC-264-6-HD 30" x 96" 6" x 264" 4750 ft./min. 5 HP 220-440-550 36 ¼" 139" x 67 ½" x 53 ⅜"
PMC-312-6-HD 30" x 120" 6" x 312" 4750 ft./min. 5 HP 220-440-550 36 ¼" 163" x 67 ½" x 53 ⅜"
PMC-360-6-HD 30" x 144" 6" x 360" 4750 ft./min. 7.5 HP 220-440-550 36 ¼" 187" x 67 ½" x 53 ⅜"

Stroke sander options
Single phase motor 220 Volts
Sanding belt variable speed motor
Oversized Vertical adjustment
Contact Wheel assembly with carriage
Additional pulley
Pneumatic tensioner
recommended for applications with frequent changes of belt

Dual sanding belts
allow the user to operate with two different grits at one time

Polishing buffer wheel with linear rail
Option for polishing wheel for oscillating: movement 1/2" stroke
L ight fixture over the working table
Vacuum cup to hold parts, including:
6 vacuum cups fixed to the table
1 vacuum generator with manifold
1 selector to start/stop vacuum

Call for a demo, this machine is onsite
