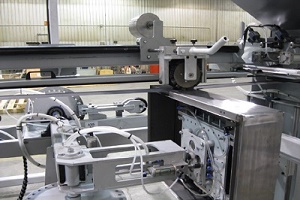

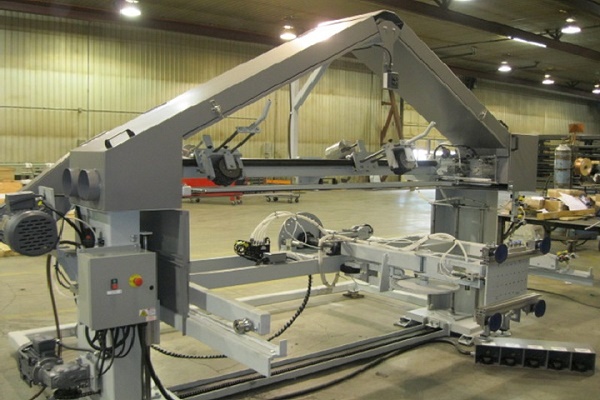

The Enclosure Box Stroke Belt Polisher includes special features designed for sanding of welded edges or polishing surfaces on steel enclosure boxes.

Box size capacities vary from 4"x4"x3" deep to 72"x48"x20" deep. Maximum weight capacity for the enclosure box is 250 pounds.

DESCRIPTION OF EQUIPMENT
Abrasive belts 4" wide at 4810 FPM, belt return in a triangle shape to allow safe access to sanding belts with manual holding pads

Pneumatic belt tensioner with linear guides, adjustable pressure by air regulator

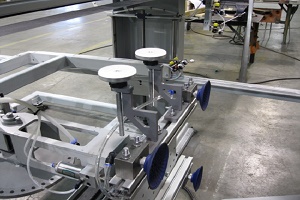

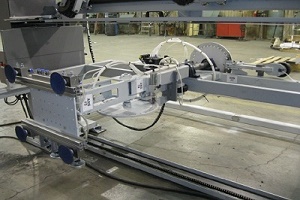

Multiple axis arm to hold enclosure box by the means of vacuum cups

Vertical movement of the multiple axis arm powered by electrical motor at a speed of 1" per second

Oversized traveling bar with one pressure contact wheel carriage

Manual graphite pad to apply pressure and twist belt to smooth edges

Options

A second abrasive belt to have simultaneously two belts with different grit ready to polish enclosure box, includes sliding safety guard cover, a second contact wheel and pneumatic tensioner and a longer stroke on the multiple axis arm to keep the 48" sanding width capacity on both belt

Various vacuum cups fixtures jigs based on enclosures box shapes and sizes
