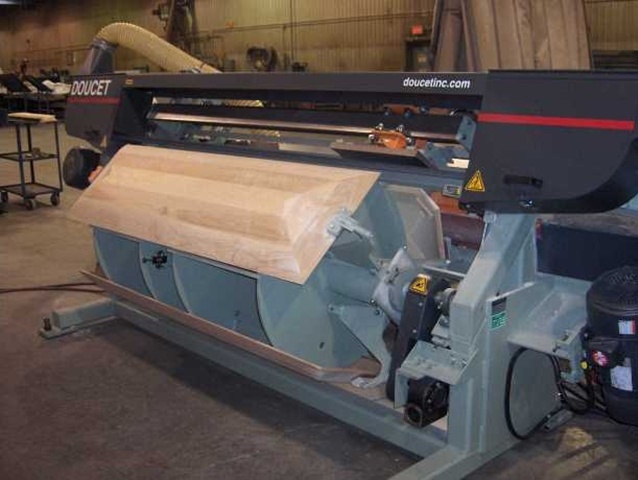

This machine is specifically designed for automated finish sanding of casket covers. The sander includes a rotary jig for mounting three casket covers at a time. Multiple stroke sander heads are used to step up the sanding grit sequence for the desired finish. When the system is automatically cycled, the stroke sander pad follows the surface of the casket cover which indexes simultaneously underneath. As the casket cover rotates, the next grit in line will begin sanding and the process is repeated until the cover is finished. This allows the finish to be highly consistent between parts and makes matching the sanded finish of the rest of the casket much simpler and faster.

Standard Features:

Sanding pad with pneumatic pressure control

Two sanding belts

Rotating jig to hold up to three work pieces

PLC control of machine cycle and jig rotation

Options

Also available in manual version, one cover at the time, automatic rotation and manual sanding pad movement

Short casket cover capability

Barn style casket capability with stop and go movement on rotary jig

Variable sanding belt speed

This versatile platform can be customized to fit your sanding applications
