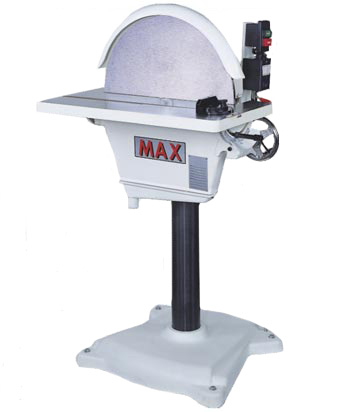

MODEL 20-SD
Overall Dimensions:
Width 29", Depth 30",
Height 54"
Table: 11" x 27", with 3 3/8" x 4 ¾" projections beyond disc.
Raises and lowers from 1" below disc to 1" below center of disc.
Tilts 45 degrees up and down.
Locks securely in any position.
Table stop - 90 degrees positive and adjustable.
Protractor has 1 degree markings on sloping face.
Table front edge machined parallel with disc and 3/8" x ¾" groove.
Hand tilt table standard, gear tilt optional at extra cost.

DISC - 20" CAST ALUM
HUB - 6" DIS. CAST IRON
MOTOR - 2 OR 3 HP 3 PHASE
STARTER - MANUEL, MAGNETIC OR REVERSING.


Addison Abrasives
 341 W. Interstate Rd,
Addison Illinois 60101
Tel 630 543-1850
Fax 630 543-5207
info@addisonabrasives.com
