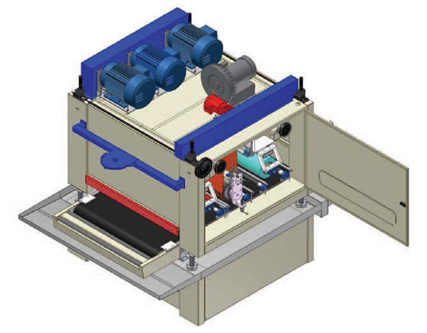

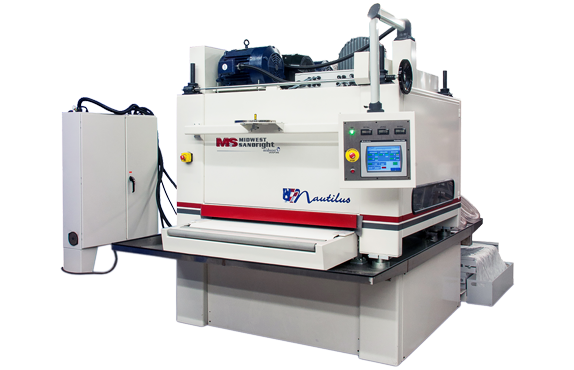

Midwest Sandright Nautilus 3 Wet Deburring & Finishing
WET DEBURRING MACHINE

STANDARD FEATURES
• Heavy-duty upper and lower frame weldments
• Heavy-duty conveyor bed is precision ground for flatness
• Constant pass line height with four (4) post design
• Four (4) precision jacks with covered gears and roller bearing guides
• Three and four head configurations • Standard 37” and 52” widths
• Large 10” diameter contact drum(s) are high speed balanced
• Ultrasonic abrasive belt tracking system
• Models with brush head assemblies include standard oscillating speeds of 250 strokes per minute
• Large diameter conveyor bed and idler rollers
• Automatic self-aligning abrasive belt tracking system
• Automatic conveyor belt tracking
• 15-30 HP TEFC drive motors for each head assembly
• Infeed conveyor extension with two (2) vinyl covered rollers
• Outfeed conveyor extension
• Spring-loaded pinch rollers
• Individual amp meters for each head • Automatic disc brake on each head
• HMI/PLC controls with color monitor
• Electronic thickness adjustment with positioning unit
• Electronic variable speed control with digital readout
• Emergency stops and safety interlocks
• UL/CSA Approved components

OPTIONAL EQUIPMENT
• Electronic variable speed belt/brush control Note: includes forward/reverse brush head rotation
• Adjustable contact drum with eccentric bearing
• Special conveyor belt with smooth splice to minimize telegraphing
• Small parts magnet
• Vacuum bed
• UL Approved electrical panel
