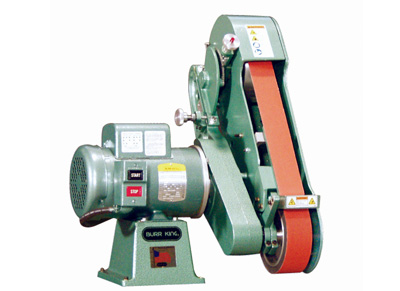

Burr King Model 960-250
 |
|
 |
 |
| Burr King's family of two wheel grinders provides vigorous contact wheel, workrest, and platen grinding in a frame design that pivots to ideal work positions. These machines are frequently selected as tool post grinders, roll grinders, and for fixturing into centerless grinding applications. Available in easily adjusted variable speed and aggressive single speed. |
| Model 960-250 has a standard 60" belt up to 2-1/2" wide and can be bench or pedestal mounted. - Contact wheel, platen and work support grinding. - Adjustable belt tension. - Positive belt tracking. - Quick belt change. - Up to 8000 SFPM belt speed standard. - Compact footprint friendly to "cell" manufacturing. - Adapts for "tool post" or "on center" grinding. - Adapts for robot mounts. - Variable speed 120/220-1 PH, and 220/440-3 PH options. - Precision machined cast aluminum frame. - OSHA compliant, enclosed guarding |
| Pedestal is optional, not included. |
| *Includes magnetic starter (NEMA 12) and controls without power cord. |
| Call for a demo, This machine is made in the USA |
Speed Fixed |
Speed Variable |
Horse Power |
Volt/Phase |
SKU |
8000 SFPM |
NO |
1.5 |
120/1 |
90100 |
8000 SFPM |
NO |
1.5 |
220/1 |
90200 |
8000 SFPM |
NO |
1.5 |
|
90303 |
8000 SFPM |
NO |
1.5 |
440/3 |
90403 |
8000 SFPM |
NO |
2 |
220/3 |
90503 |
8000 SFPM |
NO |
2 |
440/3 |
90603 |
8000 SFPM |
NO |
3 |
220/3 |
90703 |
8000 SFPM |
NO |
3 |
440/3 |
90803 |
4000 SFPM |
NO |
1.5 |
120/1 |
91100 |
4000 SFPM |
NO |
1.5 |
220/1 |
91200 |
4000 SFPM |
NO |
1.5 |
220/3 |
91303 |
4000 SFPM |
NO |
1.5 |
440/3 |
91403 |
4000 SFPM |
NO |
2 |
220/3 |
91503 |
4000 SFPM |
NO |
2 |
440/3 |
91603 |
4000 SFPM |
NO |
3 |
220/3 |
91703 |
4000 SFPM |
N0 |
3 |
440/3 |
91803 |
NO |
800-8000 SFPM |
1.5 |
120/1 |
92110 |
NO |
800-8000 SFPM |
1.5 |
220/1 |
92210 |
NO |
800-8000 SFPM |
2 |
220/1 |
93110 |
NO |
800-8000 SFPM |
2 |
220/3 |
94103 |
NO |
800-8000 SFPM |
2 |
440/3 |
94203 |
