Burr King Model 562
 |
|
 |
 |
| Burr King's family of three wheel grinders provides maximum versatility. Contact wheel, platen, work rest support, and loose belt grinding are precision controlled with positive belt tracking, quick belt change, and linear belt tension. Model 482 offers a 2 x 48 inch belt size. |
| Constructed of rugged cast aluminum and precision machined components, every Burr King grinder delivers unexcelled grinding performance and reliability. |

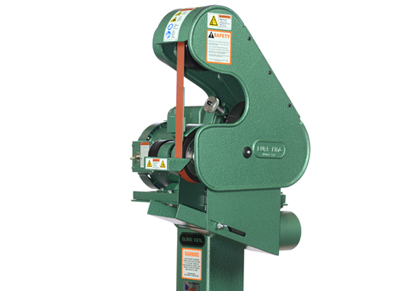

| Model 562 shown with optional dust scoop (DS-5). This machine can be pedestal or bench mounted and uses a standard 42" belt up to 1" wide. |
| Contact wheel, platen and workrest support grinding. -Slack belt grinding. -Adjustable belt tension. -Positive belt tracking/patented design. -Quick belt change. -Large throat clearance for enhanced work point access. -Precision machined cast aluminum frame. -Accepts internal grinding attatchments (excluding Model 562). -Accepts nylon, buffing, wire, fiber wheels. -Compact footprint friendly to "cell" manufacturing. -OSHA compliant, enclosed guarding. |
| Pedestal is optional, not included. |
| *Includes magnetic starter (NEMA 12) and controls without power cord. |
| Call for a demo, This machine is made in the USA |
Speed Fixed |
Speed Variable |
Horse Power |
Volt/Phase |
SKU |
5300 SFPM |
NO |
3/4 |
120/1 |
56100 |
5300 SFPM |
NO |
3/4 |
220/1 |
56200 |
5300 SFPM |
NO |
3/4 |
220/3 |
56303 |
5300 SFPM |
NO |
3/4 |
440/3 |
56403 |
NO |
530-5300 SFPM |
3/4 |
120/1 |
57110 |
NO |
530-5300 SFPM |
3/4 |
220/1 |
57210 |
NO |
530-5300 SFPM |
1 |
220/3 |
58103 |
NO |
530-5300 SFPM |
1 |
440/3 |
58203 |
